SMC 1900
Servo Precision Double-Helix High Speed Sheet Cutter Machine
Features Introduced
Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.
- Auto positioning slitting system.
- Paper pre-press device.
- 3 times delivery device(no impression line).
- Collecting board pneumatic lifting device.
Partial Introduction
Auto brake
Auto anti curve
Auto tension control
Auto edge position correction
Auto positioning slitting system (optional)
Paper pre-press device
Double helix knife
Reject gate
Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Main Technical Parameter
| Model | SMC-1900 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 100-1000gsm |
| Cutting length range | 450-1650mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 380 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 25000kgs |
| Full-load power | 100kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 550 | 135 | 240 |
| 600 | 155 | 260 |
| 650 | 190 | 290 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 850 | 300 | 355 |
| 900 | 300 | 345 |
| 950 | 300 | 320 |
| 1000 | 300 | 300 |
| 1050 | 300 | 285 |
| 1100 | 290 | 265 |
| 1150 | 285 | 250 |
| 1200 | 280 | 235 |
| 1250 | 270 | 220 |
| 1300 | 260 | 210 |
| 1350 | 260 | 195 |
| 1400 | 260 | 190 |
| 1450 | 260 | 180 |
| 1500 | 260 | 175 |
| 1550 | 260 | 168 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |

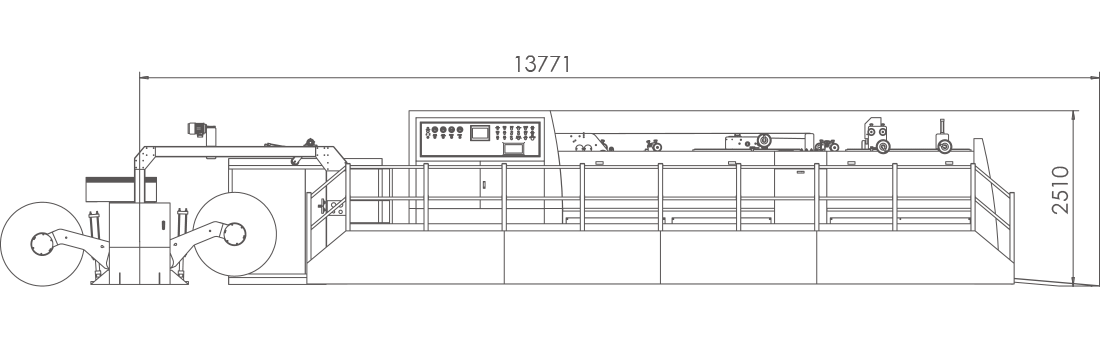

Drawing
