SMC-1100
Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking
Features Introduced
SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.
Partial Introduction

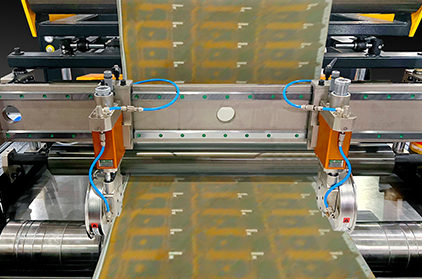

Slitting system

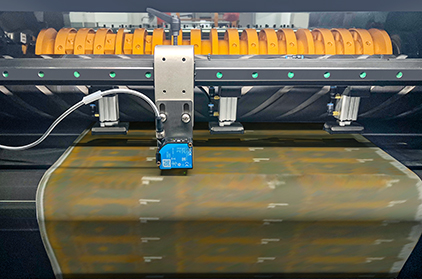

Photoelectric tracking system

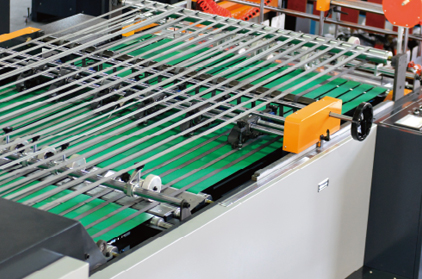

3 times delivery (No impression line)

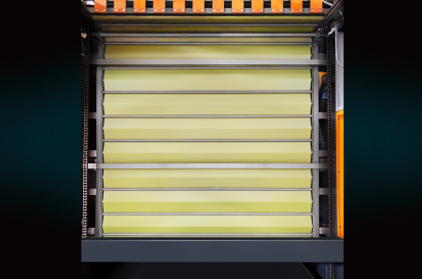

Non-stop rolling curtain paper delivery device
Main Technical Parameter
| Model | SMC-1100 |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 100-800gsm |
| Cutting length range | 450-1450mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 330m/min |
| Max. cutting speed | 540cuts/min |
| Max. photoelectric tracking cutting meter speed | 200m/min |
| Max. photoelectric tracking cutting speed | 200cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100(45”)mm |
| Max. paper piling height | 1400mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| G.W. | 18000kgs |
| Full-load Power | 69kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 195 | 435 |
| 500 | 240 | 480 |
| 600 | 325 | 540 |
| 700 | 330 | 475 |
| 800 | 330 | 410 |
| 900 | 325 | 365 |
| 1000 | 310 | 310 |
| 1100 | 300 | 275 |
| 1200 | 300 | 250 |
| 1300 | 305 | 235 |
| 1400 | 315 | 235 |
| 1500 | 330 | 220 |
| 1600 | 335 | 210 |
