MHK 1050ACER
Automatic Die Cutting Machine with Heating System(Heavy Duty)
Partial Introduction
Feeder unit
Four pick up and four forward suck heads with angle adjustment to handle different kinds of materials.
Feeding table
Synchronizing device to adjust the sheet positioning to the front lay by hand during production,Sheet hold-down device (guiding the sheets to the front lays).
Torque limiter
Taiwan high precision intermittent segmentation ensure high positional precision for long time usage.
Taiwan torque limiter can accurately protect the artificial operation accident to guarantee the people and machine safety by its sensitive limit protection performance.
Main motor lubrication system
Taiwan made automatic oil pump cooling circulation system to ensure main motor lubrication of high speed for a long time.
Equipped with oil pressure gauge and with oil pressure alarm device.
Stripping unit
Adopt center line system,Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.
Gripper edge waste removal device
Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.
Delivery unit
Automatic delivery with non – stop curtain. This curtain moves into the delivery to catch the arriving sheets during the pile exchange.two blowers for paper collection can ensure neat collection of thin and thick papers.
Electrical unit
Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.
Germany vaccum pump
Germany Becker oil free blower and vacuum pump.
Auto lubrication system
Adopt concentrated auto lubrication system to make sure the driven parts working better.
Configurations
| Feeding Unit | MHK-1050ACER |
| 01. Monolithic conveying section wall panel of ductile iron | 〇 |
| 02. Fish scale type strong paper suction head, 4 suction and 4 feed, the suction head can adjust various paper suction Angle according to the deformation of paper | 〇 |
| 03. Adjustable air suction tube, suction head and air distribution valve superhard alloy treatment | 〇 |
| 04. Three feida head anti-collision devices | 〇 |
| 05. Horizontal paper parting and blowing device | 〇 |
| 06. The main and secondary stacking paper table does not stop alternately, feida non-stop operation, the maximum pile of paper height 1600mm | 〇 |
| 07. Main electric left and right trimming device for paper feed stack | 〇 |
| 08. The pre-stack device is equipped with rails so that the operator can accurately and easily load the stack into the feita | 〇 |
| 09. Push-pull side gauge, one set for operation side and one set for transmission side. Side gauges can be adjusted between push and pull gauges to meet different paper requirements | 〇 |
| 10. Side gauge, front gauge paper photoelectric detection | 〇 |
| 11. Paper arrives before the gauge, slow down the function of paper | 〇 |
| 12. Electromechanical double detector | 〇 |
| 13. Import paper conveyor belt and stainless steel conveyor plate | 〇 |
| 14. Pneumatic lifting device for feeding frame | 〇 |
| 15. Single point clutch: the conveying part and the main part can be separated and combined synchronously at any time, simplifying and facilitating the operation sequence. No matter the sample, test pressure, etc., can be arbitrarily separated and closed conveyor section | 〇 |
| 16. PLC and electronic CAM control the timing of the whole machine | 〇 |
| 17. Germany Baker brand blowing and suction dual vacuum pump | 〇 |
| Die-cutting Unit | |
| 01. Ductile iron heavy main body and left and right wall panels and upper platform, lower platform | 〇 |
| 02. Imported worm gear, worm with 40CR crankshaft | 〇 |
| 03. Rotary device for die cutting bottom plate and cutter template | 〇 |
| 04. Automatic lubricating oil cooling and lubrication system in main transmission box | 〇 |
| 05. Imported torque limit overload protector | 〇 |
| 06. Electric pressure regulating device can realize accurate pressure control through PLC touch screen keys | 〇 |
| 07. The whole set of imported anodized aluminum alloy tooth row and positioning structure 7 groups, each tooth row adopts adjustable tooth row structure | 〇 |
| 08. Servo control system is adopted for the rear positioning of tooth row, and the accuracy of each tooth row can be adjusted by PLC touch screen button to ensure the accuracy of tooth row, permanent accuracy of ±0.075mm (patented product) | 〇 |
| 09. Import main drive chain | 〇 |
| 10. Imported intermittent divider | 〇 |
| 11. Imported synchronous belt, belt wheel drive | 〇 |
| 12. Main drive inlet pneumatic clutch brake device | 〇 |
| 13. Japanese SMC pressure detection device, pressure is too low alarm | 〇 |
| 14. Die-cut plate frame adopts center line fast positioning device structure | 〇 |
| 15. Die-cut plate frame and die-cut bottom plate are locked by Japanese SMC gas regulator, to avoid the upper plate frame lock installation is not in place, effectively avoid the loss caused by human factors operation | 〇 |
| 16. Siemens brand main motor drive | 〇 |
| 17. The whole machine adopts centralized automatic oil supply system to ensure that the transmission part is not short of oil | 〇 |
| 18. Equipped with air storage tank to ensure the stable air pressure | 〇 |
| Stripping Unit (Clean up all sides) | |
| 01. Scrap left and right wall panels of ductile iron | 〇 |
| 02. Clean up the waste transmission mechanism | 〇 |
| 03. You can choose whether to use the waste cleaning function | 〇 |
| 04. Drive mechanism of waste – removing mould in the middle | 〇 |
| 05. Clean the waste transmission mechanism | 〇 |
| 06. The installation of the middle waste cleaning board adopts the center line quick positioning installation mode, so that the operator can quickly install the waste cleaning board and improve the efficiency of changing the board | 〇 |
| 07. Mouth waste cleaning device | 〇 |
| Delivery Unit | |
| 01. Left and right wall panels of nodular cast iron | 〇 |
| 02. Adjustable mechanical paper receiving brush and paper pressing mechanism to help the teeth discharge paper and stack | 〇 |
| 03. Paper collecting and paper leveling device | 〇 |
| 04. Photoelectric detection of the upper and lower limit switch prevents the paper from being piled too high and the paper from being rolled up | 〇 |
| 05. Rolling curtain type auxiliary paper collecting frame, can realize non-stop machine paper collecting | 〇 |
| 06. The paper receiving part can be controlled by 7 inch touch screen | 〇 |
| 07. Paper receiving bidirectional auxiliary blowing, manual sampling mechanism, easy to operate | 〇 |
| Electrical Parts | |
| 01. The die cutting part adopts German Siemens 10.4 inches and the paper receiving part 7 inches touch screen | 〇 |
| 02. All the machines adopt relays, AC contactors, air switches and buttons made by Moeller from Germany to ensure the stability and reliability of electrical parts | 〇 |
| 03. The whole machine adopts Japanese Omron photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action | 〇 |
| Hot Pressure Control System | |
| 01. Temperature zone independent control system, effectively control the heating temperature of the heating plate. Ensure the whole heating system temperature control more balanced and stable | 〇 |
| 02. The hot pressing part adopts 7 inch temperature control touch screen, easy to operate | 〇 |
Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △
Main Technical Parameter
| Model | MHK-1050ACER |
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Max. Embossing Area | 1040×720mm |
| Minimum Gripper Margin | 9-17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Embossing Accuracy | ≤±0.075mm |
| Max.die Cutting Force | 600T |
| Max.working Speed | 7500s/h (Die cutting)；7500s/h (Hot pressing) |
| Max. Feeder Pile Height | 1600mm(With wooden pallet) |
| Max. Delivery Pile Height | 1400mm(With wooden pallet) |
| Electric-heated System | 20 temperature ranges, 40-180℃ is adjustable |
| Machine Dimensions | 7072×4317×2349mm(L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 19.5T |
| Main Motor Wattage | 15w |
| Full Load Wattage | 35kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |

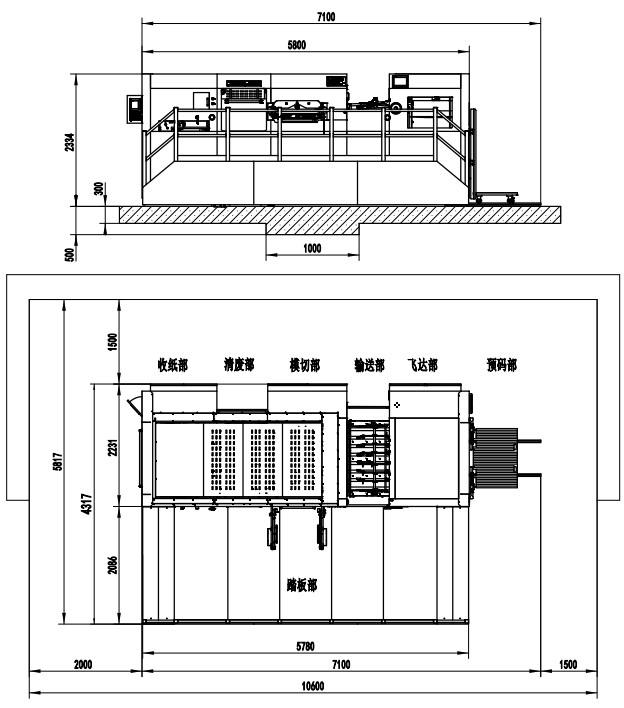

Drawing
