GM 1100/1500/1700/1900
Servo Precision High Speed Sheet Cutter
Features Introduced
GM-1100/1500/1700/1900 Servo Precision High Speed Sheet Cutter apply the advanced techinque of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assurethe paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benifit of your work.
Partial Introduction
Three sets of slitting knife are used for trimming and middle slitting
Cutting knife unit
Overlapping unit
Electric appliance unit
Main Technical Parameter
| Model | GM-1100/1500/1700/1900 |
| Model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness of cutting paper | 60-550g |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1100mm/1500mm/1700mm/1900mm |
| Cutting length range | 450-1600mm |
| The format of slitting | 2 sheet |
| Cutting precision | Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
| Max. cutting speed | 350cuts/min |
| Max. cutting meter speed | 350m/min |
| Max. paper piling height | 1500mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220V×50Hz |
| Gross weight | 11000kgs/13000kgs/15000kgs/17000kgs |
| Full-load Power | 22/26/30/35kw |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Equipment of electrostatic elimination | 1SET |
| Middle slitting and waste collection system | 1SET |
| Automatic counting and label inserting equipment | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Double arm oil pressure shaftless mill roll stand | 1SET |
| Automatic directing and paper tension controller | 1SET |
| Equipment of automatic vacuum | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.

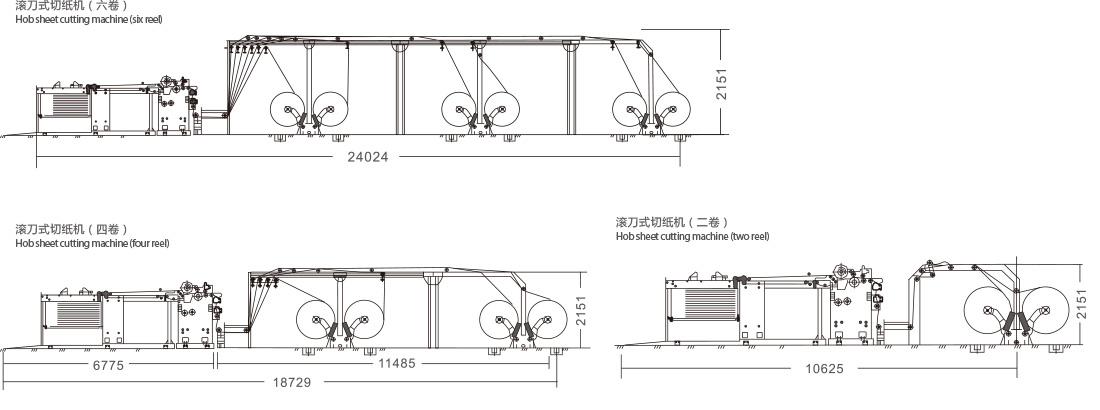

Drawing
